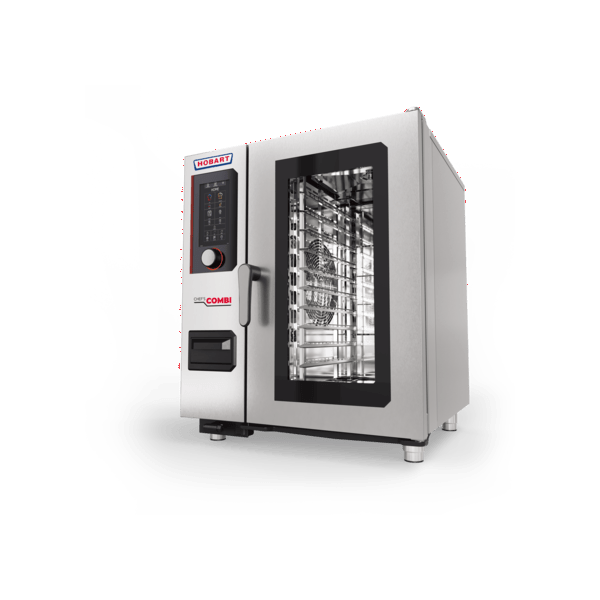

CHEF'S COMBI 101
CHEF'S COMBI 101
Capacity: 10 x 1/1 GN
Number of meals per day: 80 - 150
Maximum total load: 50 kg
DESCRIPTION
CHEF’S COMBI 10 GN electrically heated
10 x 1/1 GN (space between 2 level 67 mm)
Different modes:
Convection: from 30°C to 300°C
Steam: from 30°C to 100°C
Hot Steam: from 101°C to 130°C
Mixt: from 30°C to 300°C
Capacitive 10" HD Touchscreen usable with gloves
Maximum cooking temperature 300°C
Even energy distribution in the cooking cabinet by means of a controlled air distribution system with reversing fan wheel
Automatic cleaning and care system, independent of water pressure, for the cooking cabinet and steam generator
Connectivity via Ethernet for a stable and secure connection. Ethernet interface
Integrated USB interface for local data exchange
Includes core temperature probe with three measuring points
Integrated retractable hand shower and switchable spray / jet function
Maximum level height not higher than 1.6 m when using an appropriate stand
Variants
| Order number | Description |
|---|---|
|
Convection steamer CHEF'S COMBI, electrically heated |
PRODUCT FEATURES
All-in-one multifunctional cooking equipment: convection, steam cooking, roasting, grilling, baking, air frying, poaching, simmering, low temperature cooking, defrosting, regeneration, holding
Advanced cooking technologies for premium cooking results. With powerful heating elements, lambda sensor-controlled climate regulation, high-performance dehumidification, controlled even heat distribution and humidifying function
COMBI OS: Innovative operating concept, based on smart phone operation, with a high-performance processor working in the background. This makes operation intuitive and very responsive. If desired, the user interface can be easily adapted to personal requirements
COMBI CLIMATE CONTROL: The heat is distributed evenly and, if required, powerfully in the cooking cabinet, ensuring the best cooking results even when fully loaded. Fresh steam is supplied by the steam generator. The high-performance dehumidification secures the desired crispiness
AUTO CLIMATE supports the user during manual cooking if required. AutoClimate sets the appropriate cooking climate depending on the cabinet temperature set
COMBI GUIDE is the simple cooking assistant for reproducible cooking results, no matter who is at the helm. The user specifies how the food has to be cooked and COMBI GUIDE automatically sets the ideal cooking climate. The load detection makes the appropriate adjustments. If necessary, the user can intervene at any time
MENU MIX monitors every level to the second. Simply load, set the timer and the CHEF'S COMBI will let you know when the food is ready. If desired, MENU MIX can show which dishes go together. And of course, mixed loads can also be planned and saved accordingly
COMBI CARE: Automatic cleaning system with soiling detection and cleaning programs that can be ideally adapted to the degree of soiling. Usage of solid Cleaner Tabs and easy to use Care Sticks
Technical data
| Flow Pressure | 1.5 - 6 bar |
| Recommended Water Hardness | 3 to 11°dH* |
| Conductivity | ≥ 50 μS / cm |
| Total Loading Electro - Standard (Boiler) | 18.2 kW | 29.0 A |
| Noise Level | < 70 dB (A) |
*From 11°dH, we recommend a demineralisation filtration system be installed on the incoming water line to protect the convection steamer against lime scale. The installation must be performed according to Australian standards, as per the provided manual and utilising the Watermark approved back flow prevention device supplied with the unit.
Accessories
| Order number | Description |
|---|---|
| -CG |
Option 6 & 10 Levels Cooking Grease Collection Combi |
| -FG |
Option 6 & 10 Levels Reversed Door |
| ACICTABL |
Chef's Combi Cleaner Tabs (Bucket 100 Units) - Highly effective cleaning tabs to ensure high hygiene and cost effectiveness |
| ACICSTID |
Care Stick (Bucket 100 Units) |
| ACIC1KAPTNC |
GN 1/1 Adapter Kit for Comp. Stands |
| ACIC6&12KMPT |
6 & 10 Levels GN 2/1 Stand Mobile Kit |
| ACICKWIFI |
WIFI Connectivity Kit |
| ACICKEN |
Energy Management Connex. Kit |
| ACIC6&11CRB |
6 & 10 Levels GN 1/1 Banqueting Running Device - Mobile Support |
| ACIC101CG65 |
10 Levels GN 1/1 Runners Trolley sp.65 |
| ACIC101TCB |
10 Levels GN 1/1 Banqueting Trolley Table |
| ACIC101KE8 |
10 Levels GN 1/1 Runners Kit 8 Lev. |
| ACIC101KEEU |
10 Levels GN 1/1 Runners Kit Euronorm (bakery) |
| ACIC1PMSSU |
GN 1/1 Mobile Stand for Stacked Ovens (Safe Use 1.6 m) |
| ACIC1GI |
GN 1/1 Stainless Steel Shelf Grid |
| ACICKCGHC |
Diameter 200mm Connection Hose Kit for Condensation Hood |
| ACICCCG |
Cooking Grease Collection Trolley |
| ACIC6&11KMPT |
6 & 10 Levels GN 1/1 Stand Mobile Kit |
| ACIC1KPLINT |
GN 1/1 Stainless Steel Plinth Kit for Ovens on Table |
| ACICSCUSB |
USB Core Probe Standard 3pts - Diameter 3.5 mm - 2 x 100 mm |
| ACICSCFUSB |
USB Core Probe Delicate Products 1pt - Diameter 2.5 mm - 5 x 100 mm |
| ACIC101PT |
10 Levels GN 1/1 Stand |
| ACIC101KPP |
10 Levels GN 1/1 Stand Door Kit |
| ACIC1KSE |
GN 1/1 Stacked Kit for Ovens (Electric) |
| ACIC1KSPIE |
GN 1/1 Stacked Kit for Ovens Reversed Door (Electric) |
| ACIC1PMS |
GN 1/1 Mobile Stand for Stacked Ovens |
| ACIC1PT1S |
GN 1/1 Stand H.150 for Stacked Ovens |
| ACIC1PT2S |
GN 1/1 Stand H.250 for Stacked Ovens |
| ACIC6&11HCE |
6 & 10 Levels GN 1/1 Condensation Hood (For Electric Oven) |
| ACIC6&11KFCHC |
6 & 10 Levels GN 1/1 Carbon Filter Kit for Condensation Hood |
| ACIC6&11KFHHC |
6 & 10 Levels GN 1/1 HEPA Filter Kit for Condensation Hood |
| ACIC6&11KCG |
6 & 10 Levels GN 1/1 Cooking Grease Collection Kit |
| ACIC6&11PTCG |
6 & 10 Levels GN 1/1 Stand Cooking Grease Collection |
| ACIC1PLGPD |
GN 1/1 Cross Grill & Pizza DURAQUARZ Coated Reversible |
| ACIC1PLGR |
GN 1/1 Baking & Grill Tray Diamond Shape |
| ACIC1PLPP |
GN 1/1 Perforated Baking Tray |
| ACIC1PLPR |
GN 1/1 Roasting & Baking Tray |
| ACIC1SBGT |
GN 1/1 Tandoori Sticks Rack |
| ACIC1G8P |
GN 1/1 8 Chicken Rack / Spike |
| ACIC1PLG40 |
GN 1/1 Tray Granit Enameled Depth 40 |
| ACIC1PLG60 |
GN 1/1 Tray Granit Enameled Depth 60 |
| ACIC1PL8O |
GN 1/1 Eggs Tray 8 Holes |
| ACIC1PLGP |
GN 1/1 Pizza & Baking Tray |
| ACIC1PAFD |
GN 1/1 Frying Baskets Coated with DURAPEK |
| ACICSMOK |
Smoker |
