PROFI CN-A
PROFI CN-A
DESCRIPTION

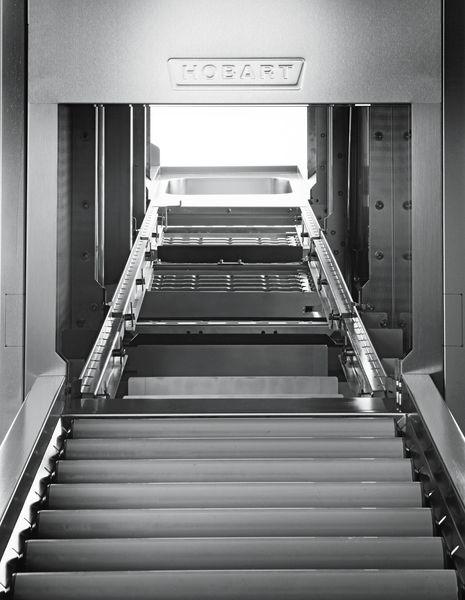

- Automatic rack type dishwasher
- 3 speeds - 80 / 95 / 150 racks per hour
- Nominal capacity up to 150 racks/h or 2,700 plates/h or 5,400 glasses/h
- Electrical load 415 / 50 / 3 N+E
- Integrated C20 heat recovery
- Warm water connection for filling
- Cold water connection for operation - 150-170 litres per hour consumption
- Deep drawn tank, strainer pan, frame, wash arms, rinse arm and panels are stainless steel 1.4301
- Includes main switch and emergency stop switch
- Dishracks sold separately
Variants
| Order number | Description |
|---|---|
| CN-A-90-15-R/L |
Right to Left Feed CN-A-90-15 |
| CNA-90-15-L/R |
Left to Right Feed CN-A-90-15 |
PRODUCT FEATURES
- INFOTRONIC 4.3 full colour display control
- 1.8 kW stainless steel main wash pump
- C20 heat recovery system to minimise energy consumption and operating costs
- Low 150 L per hour triple rinse with rinse pump to guarantee rinse volume
- Autotimer for efficient time saving operation
- 100% hygiene deep drawn stainless steel wash tank with stainless steel tank strainer system
- Door insulation included for improved work environment & lower operating costs
- Efficient 3-speed operation (80 / 95 / 150 racks/h)
- Includes emergency stop and main switch
- Wash-rinse actuator to ensure economic operation
- New wash arms without end caps
- Watermark approved to WMTS-101:2018, Cert. WMKT21944
Technical data
The modular design of the rack-type dishwasher and the associated high number of possible versions make it impossible to reproduce the technical data for each model here. We have set out selected models with selected data in this document.
Accessories
| Order number | Description |
|---|---|
| CDC-90-15-L/R |
Left to right feed 90 degree corner dryer - adds 5.32kW to machine |
| CDC-90-15-R/L |
Right to left feed 90 degree corner dryer - adds 5.32kW to machine |
| CAF-700-L/R |
Left to right feed 700mm corner angle feed |
| CAF-700-R/L |
Right to left feed 700mm corner angle feed |
| CAF-900-L/R |
Left to right feed 900mm corner angle feed |
| CAF-900-R/L |
Right to left feed 900mm corner angle feed |
| CTC-90-L/R |
Left to right feed 90 degree powered corner entry / exit curve |
| CTC-90-R/L |
Right to left feed 90 degree powered corner entry / exit curve |
| 04-001050-5 |
Photo cell end stop switch - suits HOBART roller tables |
| 01-249750-4 |
Mechanical end stop switch |
| CDS-90-15 |
CN / CP Series dryer - adds 5.32kW to machine - multi directional |
| 04-001013-1C |
Cutaway entry hood kit. To be used with CTC & CAF option for clear flow of racks into dishwasher |
| RO-L28 |
Integrated reverse osmosis for single water supply |
| SE-H+IS2 |
Economy Single Cartidge water softener with IS2 install kit - per water inlet |
| SD-H+IS2 |
High Capacity Dual Cartidge water softener with IS2 install kit - per water inlet |
For machine protection the water hardness should not exceed 3°dH, if higher we recommend using a HOBART HYDROLINE water softener / treatment system.
