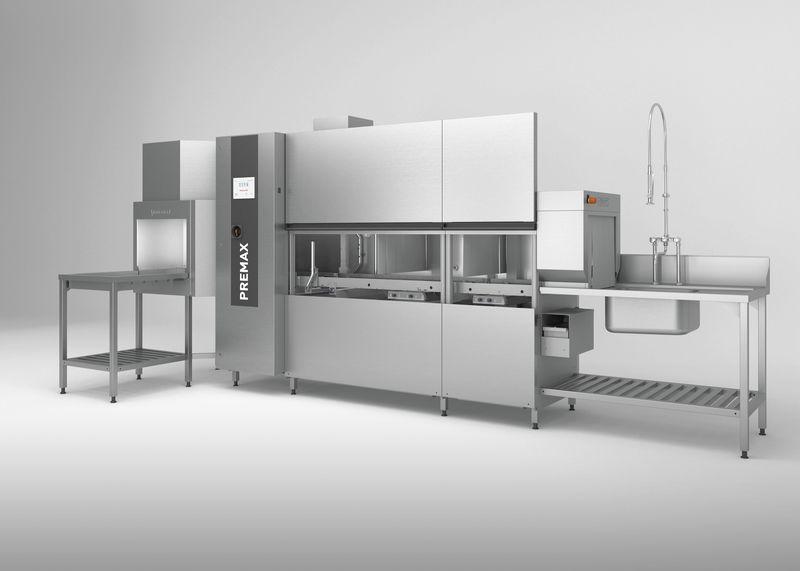

PREMAX CP-L-A-DS
PREMAX CP-L-A-DS
DESCRIPTION
- Automatic rack type dishwasher
- Triple speed - 120 / 180 / 240 racks per hour
- Nominal capacity up to 240 racks/h or 4,320 plates/h or 8,640 glasses/h
- Electrical load 415 / 50 / 3 N+E
- Integrated C20 heat recovery
- Warm water connection for filling
- Cold water connection for operation - maximum 160 litres per hour consumption
- Deep drawn tank, strainer pan, frame, wash arms, rinse arm and panels are stainless steel 1.4301
- Includes main switch and emergency stop switch
- Dishracks sold separately
Variants
| Order number | Description |
|---|---|
| CPLADS-90-15-R/L |
Right to Left Feed CPLADS-90-15 |
| CPLADS-90-15-L/R |
Left to Right Feed CPLADS-90-15 |
PRODUCT FEATURES
- High-performance prewash zone L
- 100% hygiene - deep drawn stainless steel wash tank with stainless steel tank strainer system
- Full body, door & tank insulation included for lowest heat loss, best work environment & lower operating costs
- Heat recovery C20 - fills on hot water operates on cold water for reduced energy consumption
- 3-speeds (120 / 180 / 240 racks/h)
- High performance DS drying module with integrated control panel
- Includes the following customer benefits which provide greatest ease of use, best wash results & lowest operating costs:
- Strainer Control PROOF
- Rinse actuator & autotimer
- Stainless steel wash pumps
- Protronic XL TFT touch screen control panel
- SENSOTRONIC - variable rinse water volume based on speed selected and items & volume to be washed
- Automatic self check during machine start up - BEST START
- 3 kW pre wash stand-by heater providing best wash results
- Emergency stop switch on entry
- AUTOMATIC SOIL REMOVAL (ASR) - less manual handling, less dumping & re-filling, higher throughput
- Including AUTO-CLEAN
- Watermark approved to WMTS-101:2018, Cert. WMKT21944
Technical data
The modular design of the rack-type dishwasher and the associated high number of possible versions make it impossible to reproduce the technical data for each model here. We have set out selected models with selected data in this document.
Accessories
| Order number | Description |
|---|---|
| CDC-90-15-L/R |
Left to right feed 90 degree corner dryer - adds 5.32kW to machine |
| CDC-90-15-R/L |
Right to left feed 90 degree corner dryer - adds 5.32kW to machine |
| CAF-700-L/R |
Left to right feed 700mm corner angle feed |
| CAF-700-R/L |
Right to left feed 700mm corner angle feed |
| CAF-900-L/R |
Left to right feed 900mm corner angle feed |
| CAF-900-R/L |
Right to left feed 900mm corner angle feed |
| CTC-90-L/R |
Left to right feed 90 degree powered corner entry / exit curve |
| CTC-90-R/L |
Right to left feed 90 degree powered corner entry / exit curve |
| 04-001050-5 |
Photo cell end stop switch - suits HOBART roller tables |
| 01-249750-4 |
Mechanical end stop switch |
| RO-L28 |
Integrated reverse osmosis for single water supply |
| SE-H+IS2 |
Economy Single Cartidge water softener with IS2 install kit - per water inlet |
| SD-H+IS2 |
High Capacity Dual Cartidge water softener with IS2 install kit - per water inlet |
For machine protection the water hardness should not exceed 3°dH, if higher we recommend using a HOBART HYDROLINE water softener / treatment system.
