Roadmap
PROFI CS-A
PROFI CS-A
DESCRIPTION

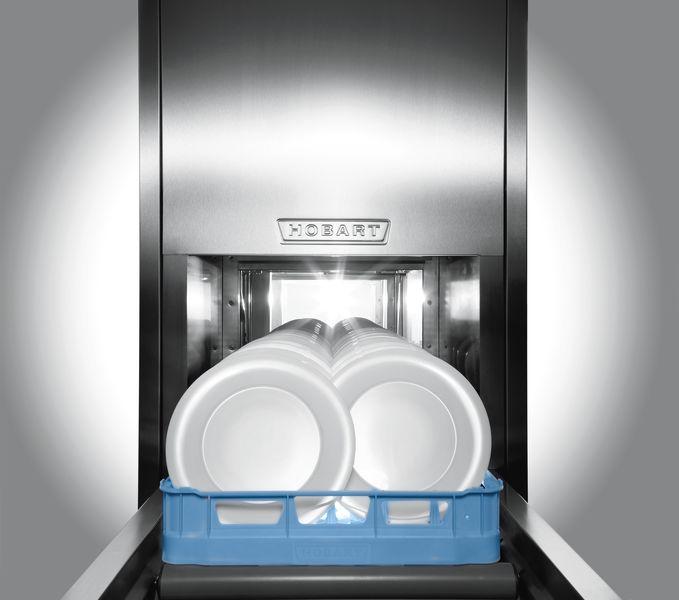

- Automatic rack type dishwasher
- Two speeds
- Nominal capacity of 100 / 150 racks/h or up to 2,700 plates/h or 5,400 glasses/h
- Electrical load 415 / 50 / 3 N+E
- Warm water connection - maximum 260 litres per hour consumption
- Deep drawn tank, strainer pan, frame, wash arms, rinse arm and panels are stainless steel 1.4301
- Includes main switch and emergency stop switch
- Optional heat recovery - hot and cold water connections required
- Dishracks sold separately
Variants
| Order number | Description |
|---|---|
| CS-A-90-15-R/L |
Right to Left Feed CS-A-90-15 |
| CS-A-90-15-L/R |
Left to Right Feed CS-A-90-15 |
PRODUCT FEATURES
- Single rinse system - 180 l/h - (1.3 / 0.9 litres per rack)
- Stainless steel tank cover strainer system
- Optimum hygiene safety - deep drawn tank
- Two speeds - 100 / 150 racks/h
- Double skin insulated full width spring assisted door
- Optional heat recovery for lower operating costs
- Stainless steel 1.5 kW wash pump
- Including main switch and emergency stop
- Drop-in wash arms with no end caps
- Colour-coded cleaning assistance
- Watermark approved to WMTS-101:2018, Cert. WMKT21944
Technical data
The modular design of the rack-type dishwasher and the associated high number of possible versions make it impossible to reproduce the technical data for each model here. We have set out selected models with selected data in this document:
Accessories
| Order number | Description |
|---|---|
| SEF-19/011 |
C12 - Heat recovery for CS models |
| D-90-15 |
CS Series dryer - adds 3.72kW to machine - multi directional |
| CDC-90-15-L/R |
Left to right feed 90 degree corner dryer - adds 5.32kW to machine |
| CDC-90-15-R/L |
Right to left feed 90 degree corner dryer - adds 5.32kW to machine |
| CAF-700-L/R |
Left to right feed 700mm corner angle feed |
| CAF-700-R/L |
Right to left feed 700mm corner angle feed |
| CAF-900-L/R |
Left to right feed 900mm corner angle feed |
| CAF-900-R/L |
Right to left feed 900mm corner angle feed |
| CTC-90-L/R |
Left to right feed 90 degree powered corner entry / exit curve |
| CTC-90-R/L |
Right to left feed 90 degree powered corner entry / exit curve |
| 04-001050-5 |
Photo cell end stop switch - suits HOBART roller tables |
| 01-249750-4 |
Mechanical end stop switch |
For machine protection the water hardness should not exceed 3°dH, if higher we recommend using a HOBART HYDROLINE water softener / treatment system.
