ECOMAX PLUS F515
ECOMAX PLUS F515
Due to the high wash power and the robust filter systems, it is the quiet and resource-saving solution for your busy workday life.
DESCRIPTION

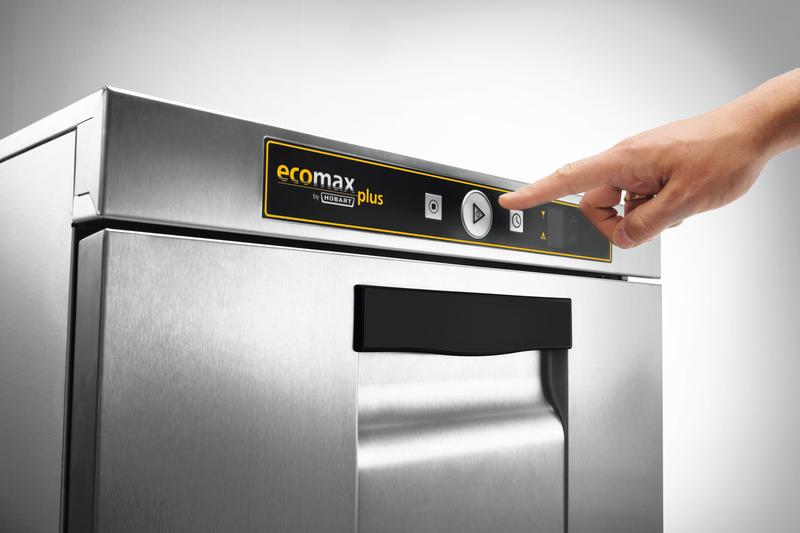

- Single-button control with digital temperature indication
- Flat surface of control panel
- 3 selectable wash cycles
- Special hygiene programme for hygienic cleanliness
- Additional cutlery and glass washing cycle
- Bottle washing programme (with the optional bottle washing system)
- Rotating top and bottom wash system to distribute the wash water evenly over the dishes
- Indented nozzles prevent blocking
- Thermostop-function for guaranteed rinse temperatures
- Stainless steel rinse arm and housing
- Removal of rinse arms without any tools
- Easy access to all parts
- Refill signal monitors fill level of external chemical containers with optional suction lances
- WaterMark License WMKT21944
Additional Plus Features:
- Deep-drawn wash tank
- Double-walled housing and heat insulated front door
- Tank strainer, coarse filter and pump suction casing
- Door damping control
- Loading height above average: 425 mm, for easy loading of large plates
- Fully equipped with detergent and rinse aid dispenser, rinse pressure pump and drain pump

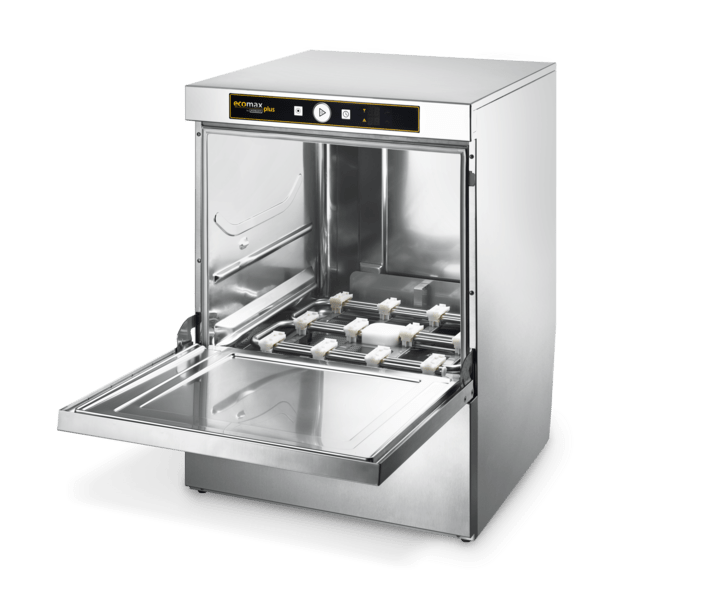

- Bottle washing programme for the hygienic cleaning of bottles with optional bottle washing system, consisting of bottle wash spray arm and bottle rack
Variants
| Order number | Description |
|---|---|
| ECO+F515-90D |
Basic model including detergent and rinse aid dispenser, drain pump and rinse pressure pump |
PRODUCT FEATURES
- 1 x plate rack P-18-12
- 1 x universal flat rack B-00-07
- Plastic cutlery rack with 4 boxes 01-246175-1
- Heater with thermostat control
- Electric cable (240 / 50 / 1 - 15amp plug & lead), flexible water supply hose and drain hose
- Rear paneling
Technical data
| Cycle Times* | 60 / 120 / 180 seconds |
| Rack Capacity | 60 / h |
| Tank Capacity | 10.6 L |
| Water Consumption | 2.0 L / rack |
| Wash Pump | 0.5 kW |
| Tank Heating | 0.8 kW |
| Booster Loading - Standard | 2.0 kW (240 V) |
| Total Connected Load - Standard | 2.6 kW (240 V) |
| Power Supply | 240 / 50 / 1 |
| Machine width | 600 mm |
| Depth | 603 mm |
| Height | 825 mm |
| Loading Height | 425 mm |
| Rack Size | 500 x 500 mm |
*The machine is equipped with an automatic cycle-time control which ensures hygienic rinse temperatures even on a cold-water supply or with reduced heating performance
Accessories
| Order number | Description |
|---|---|
| 00-714911 |
Base lockable cabinet / chemical store with PPE bracket & 150 mm legs |
| 04-006330-002 |
Low Level Chemical Sensing Lance Set - 340 mm for external containers (10 litre), HOBART WASHSMART app compatible |
| 04-019182-001 |
Complete Bottle Washing System - consisting of bottle rack for 12 bottles, spray attachment and wire attachment (3x) |
| 04-006443-001 |
Bottle Rack - 500 x 500 mm for bottle washing system: provides space for 12 bottles, minimum 16 mm bottle neck and maximum 113 mm bottle diameter |
| 00-303171-000 |
Glass Rack - 500 x 500 mm, steel wire, plastic coated, with 4 sloped rows for maximum ø 98 mm |
| CB1 |
Cutlery Box - 90 x 90 mm, plastic, loose, for approximately 20 pieces of cutlery |
| 01-246175-001 |
Cutlery Rack - 230 x 230 mm, plastic, with 4 compartments, for approximately 80 pieces of cutlery (4 x 20) |
| C-01-07 |
Cutlery Rack - 500 x 500 mm for cutlery in horizontal position narrow mesh bottom, also usable as universal rack |
| B-00-07 |
Universal Flat Rack - with wide mesh bottom (for example for cutlery baskets for cutlery in upright position) height 7 cm |
| P-18-12 |
Plate Rack - 9 spaces, full peg, for 18 flat or 12 deep plates up to 260 mm diameter or 9 trays up to 470 mm |
For machine protection the water hardness should not exceed 3°dH, if higher we recommend using a HOBART HYDROLINE water softener / treatment system.
