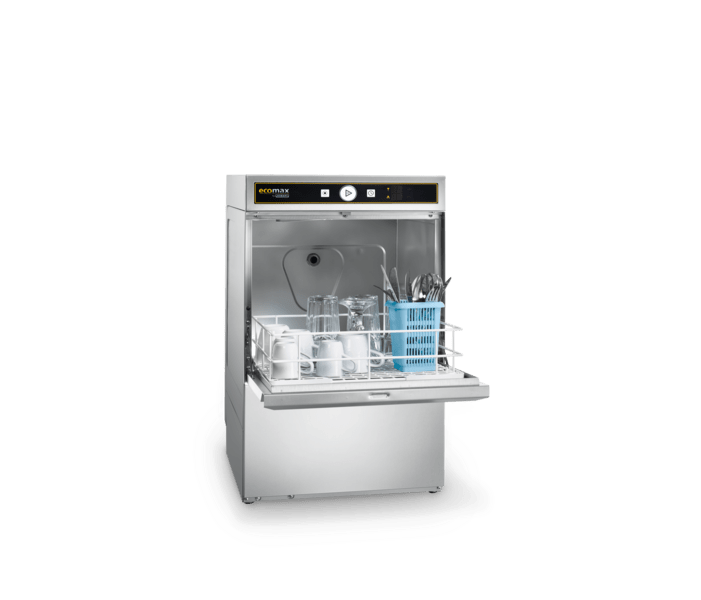

ECOMAX 404
ECOMAX 404
The fast and reliable glasswasher in compact design. Perfect for start-ups, small bars or restaurants.
DESCRIPTION
- Single-button control with digital temperature indication
- Flat surface of control panel
- 3 selectable wash cycles
- Special hygiene programme for hygienic cleanliness (drain pump necessary)

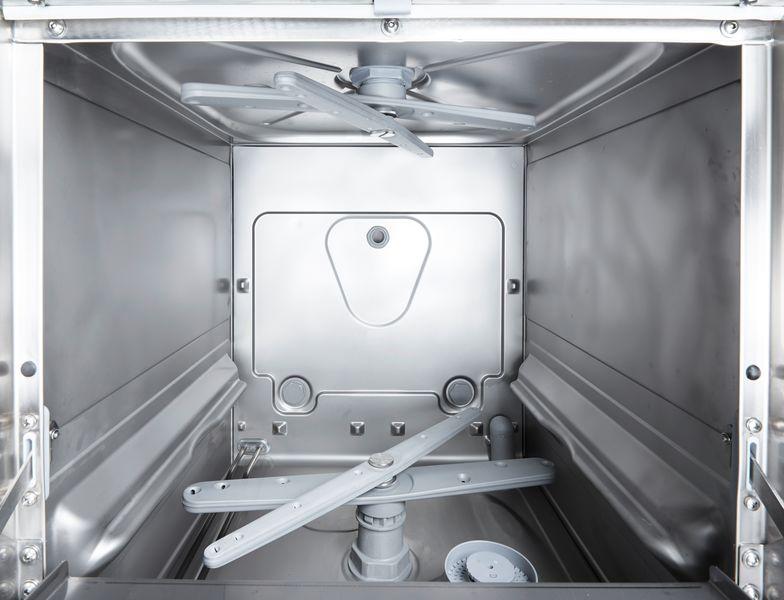

- Rotating top and bottom wash system to distribute the wash water evenly over the dishes
- Indented nozzles prevent blocking
- Thermostop-function for guaranteed temperatures
- Removal of rinse arms without any tools
- USB connection for easier service access
- Easy access to all parts
- Deep drawn rack track
- Double-walled housing and front door
- Integrated cycle counting, e.g. for control of water treatment system
- Refill signal monitors fill level of external chemical containers with optional suction lances
- WaterMark License WMKT21944
Variants
| Order number | Description |
|---|---|
| ECO-G404-90C |
Including detergent and rinse aid dispensers, drain pump and rinse pressure pump |
PRODUCT FEATURES
- 1x glass rack with 4 sloped rows
- Heater with thermostat control
- Electric cable, flexible water supply hose and drain hose
- Rear paneling
Technical data
| Cycle Times* | 60 / 120 / 180 seconds |
| Rack Capacity | 60 / h |
| Tank Capacity | 10 L |
| Water Consumption | 1.8 L / rack |
| Wash Pump | 0.18 kW |
| Tank Heating | 1.8 kW |
| Booster Loading - Standard | 1.8 kW (240 V) |
| Total Connected Load - Standard | 2.1 kW (240 V) |
| Power Supply | 240 / 50 / 1 |
| Machine width | 436 mm |
| Depth | 534 mm |
| Height | 700 mm |
| Loading Height | 308 mm |
| Rack Size | 390 x 390 mm |
*The machine is equipped with an automatic cycle-time control which ensures hygienic rinse temperatures even on a cold-water supply or with reduced heating performance.
Accessories
| Order number | Description |
|---|---|
| 04-006330-002 |
Low Level Chemical Sensing Lance Set - 340 mm for external containers (10 litre), HOBART WASHSMART app compatible |
| 00-139321-054 |
Universal Flat Rack - 385 x 385 mm, steel wire, plastic coated, flat |
| 00-139321-057 |
Glass Rack - 385 x 385 mm, steel wire, plastic coated, with 4 sloped rows for maximum ø 85 mm |
| 00-139321-086 |
Insert For Small Coffee Plates - for universal flat rack |
For machine protection the water hardness should not exceed 3°dH, if higher we recommend using a HOBART HYDROLINE water softener / treatment system.
