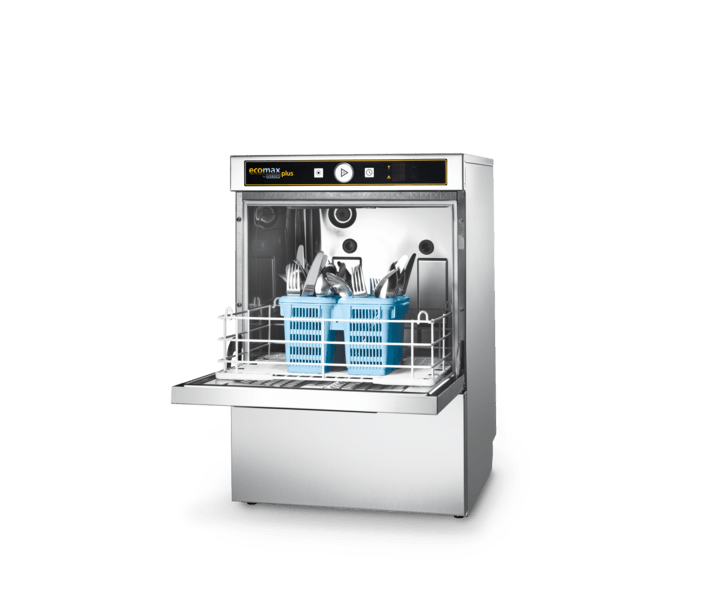

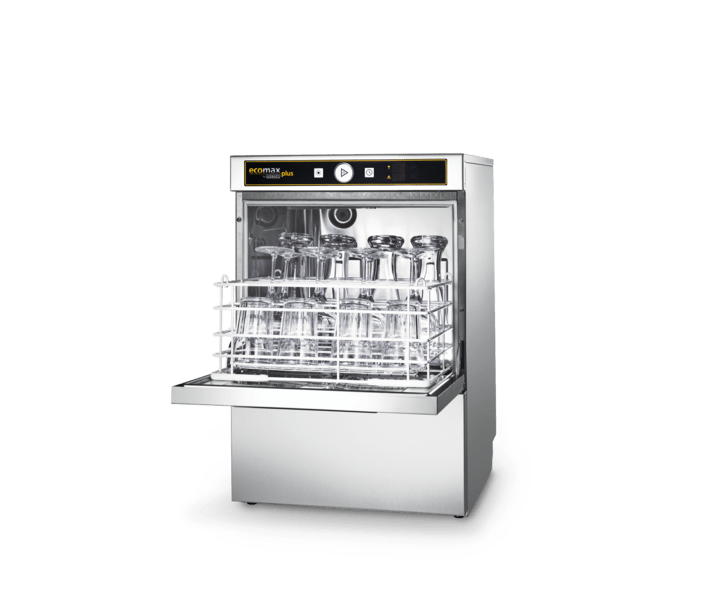

ECOMAX PLUS G415
ECOMAX PLUS G415
The compact glasswasher for hotels, bars and restaurants, that are washing more than a hundred glasses a day.
DESCRIPTION

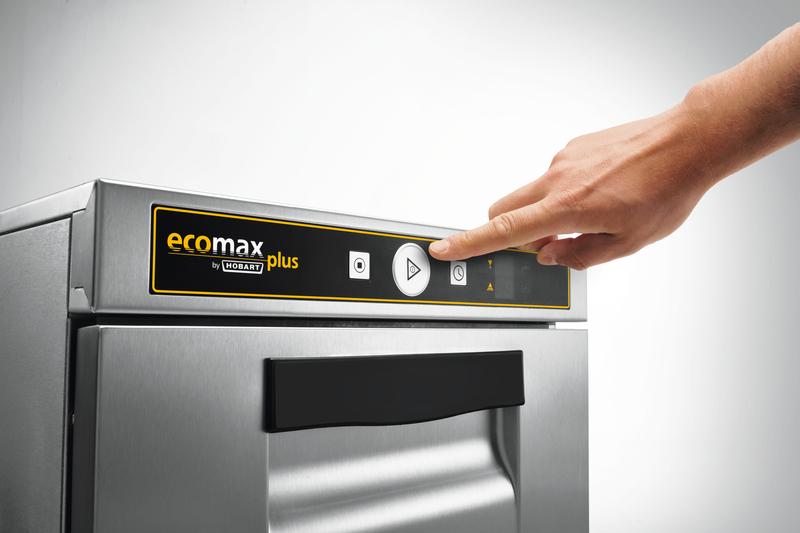

- Single-button control with digital temperature indication
- Flat surface of control panel
- 3 selectable wash cycles and special cutlery cycle
- Special hygiene programme for hygienic cleanliness

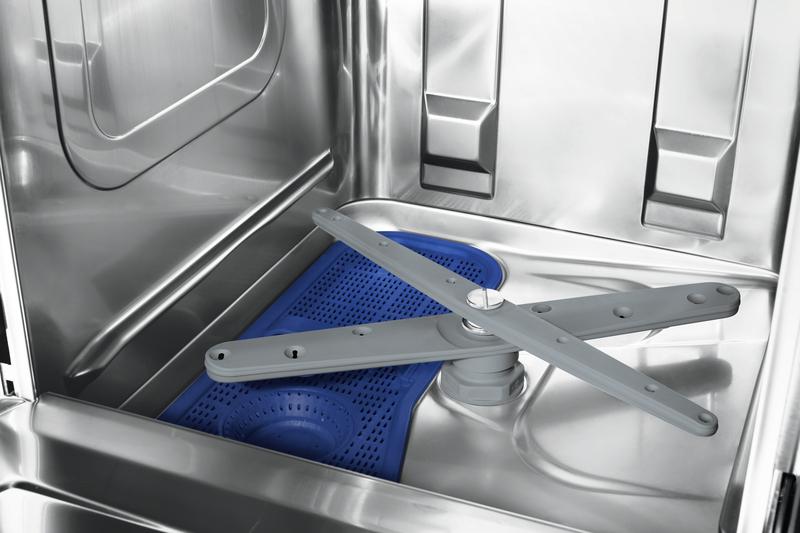

- Rotating top and bottom wash system to distribute the wash water evenly over the dishes
- Indented nozzles prevent blocking
- Thermostop-function for guaranteed rinse temperatures
- Removal of rinse arms without any tools
- Easy access to all parts
- Refill signal monitors fill level of external chemical containers with optional suction lances
- WaterMark License WMKT21944
Additional Plus Features:
- Deep-drawn wash tank
- Double-walled housing and heat insulated front door
- Tank strainer, coarse filter and pump suction casing
- Door damping control
- Loading height above average: 315 mm, for easy loading of extra high glasses
- Fully equipped with detergent and rinse aid dispenser, rinse pressure pump and drain pump
Variants
| Order number | Description |
|---|---|
| ECO+G415-90D |
Including detergent and rinse aid dispensers, drain pump and rinse pressure pump |
PRODUCT FEATURES
- 1x glass rack with 4 sloped rows
- Heater with thermostat control
- Electric cable, flexible water supply hose and drain hose
- Rear paneling
Technical data
| Cycle Times* | 60 / 120 / 180 seconds |
| Rack Capacity | 60 / h |
| Tank Capacity | 8 L |
| Water Consumption | 1.8 L / rack |
| Wash Pump | 0.4 kW |
| Tank Heating | 0.8 kW |
| Booster Loading - Standard | 2.8 kW (240 V) |
| Total Connected Load - Standard | 3.2 kW (240 V) |
| Power Supply | 240 / 50 / 1 |
| Machine width | 460 mm |
| Depth | 590 mm |
| Height | 705 mm |
| Loading Height | 315 mm |
| Rack Size | 400 x 400 mm |
*The machine is equipped with an automatic cycle-time control which ensures hygienic rinse temperatures even on a cold-water supply or with reduced heating performance.
Accessories
| Order number | Description |
|---|---|
| 04-006330-002 |
Low Level Chemical Sensing Lance Set - 340 mm for external containers (10 litre), HOBART WASHSMART app compatible |
| 00-371450-083 |
Universal Flat Rack - 400 x 400 mm, steel wire, plastic coated, height 115 mm |
| 00-371450-084 |
Glass Rack - 400 x 400 mm, steel wire, plastic coated, with 4 sloped rows for maximum ø 85 mm, height 180 mm |
For machine protection the water hardness should not exceed 3°dH, if higher we recommend using a HOBART HYDROLINE water softener / treatment system.
