ECOMAX 704
ECOMAX 704

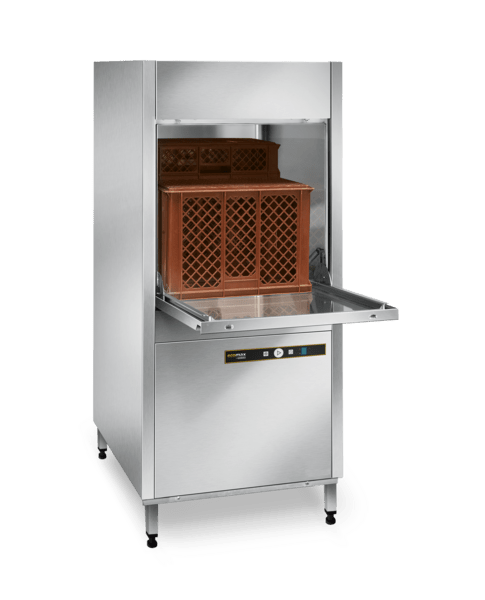

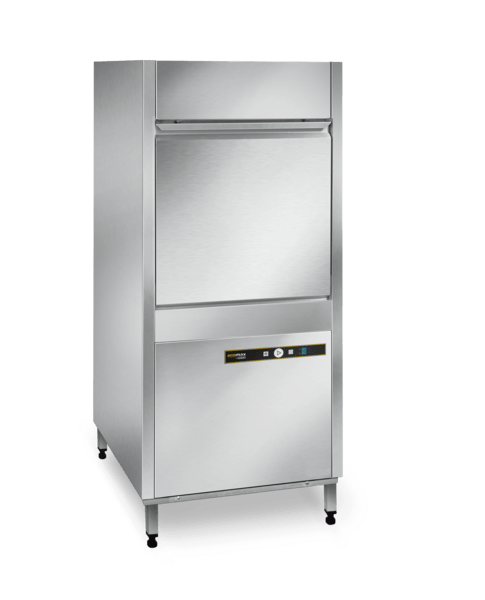

The Ecomax utensil washer, which perfectly cleans large items like pots, pans, trays or boxes and heavily soiled utensils.
DESCRIPTION
- Single-button control with digital temperature indication
- Rotating top and bottom wash system to distribute the wash water evenly over the dishes
- Deep-drawn wash tank bottom, no hygiene problems with corners and edges
- Thermostop-function for guaranteed rinse temperatures
- Removal of wash and rinse arms without any tools
- Easy access to all parts
- Flat surface of control panel
- Loading of high trays and pots: up to 630 mm loading height
- 50 mm floor clearance
- Made completely out of stainless steel
- Tank covered with strainer made of stainless steel
- Special hygiene programme for hygienic cleanliness
- Refill signal monitors fill level of external chemical containers with optional suction lances
- WaterMark License WMKT21944
Variants
| Order number | Description |
|---|---|
| Ecomax-U704-90B |
Including drain pump, detergent and rinse aid dispensers, insert and basic rack |
PRODUCT FEATURES
- Heater with thermostat control
- Pressure pump
- Electric cable, flexible water supply hose and drain hose
Technical data
| Cycle Times* | 120 / 240 / 360 seconds |
| Rack Capacity | 30 cycles/h |
| Tank Capacity | 80 L |
| Water Consumption | 4.5 L/cycle |
| Wash Pump | 2.9 kW |
| Tank Heating | 3.3 kW |
| Booster Loading - Standard | 9.0 kW (400 V) |
| Total Connected Load - Standard | 12 kW (400 V) |
| Power Supply | 400 / 50 / 3N |
| Machine width | 780 mm |
| Depth | 945 mm |
| Height | 1,765 mm |
| Loading Height | 630 mm |
| Rack Size | 600 x 760 mm |
*The machine is equipped with an automatic cycle-time control which ensures hygienic rinse temperatures even on a cold-water supply or with reduced heating performance.
Accessories
| Order number | Description |
|---|---|
| 01-510508-001 |
Basic Rack - 600 x 760 mm |
| 00-323637-000 |
Insert For 8 Sheets - 568 x 625 mm, suitable for large sheets |
| 00-323753-000 |
Insert - 568 x 665 mm suitable for plates, bowls, sheets, etc. |
| C-01-07 |
Cutlery Rack - 500 x 500 mm for cutlery in horizontal position narrow mesh bottom, also usable as universal rack |
For machine protection the water hardness should not exceed 3°dH, if higher we recommend using a HOBART HYDROLINE water softener / treatment system.
