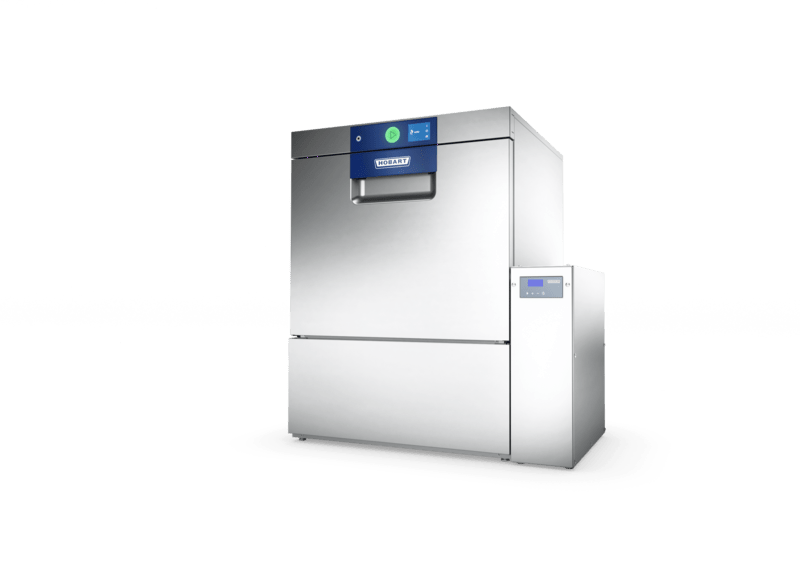

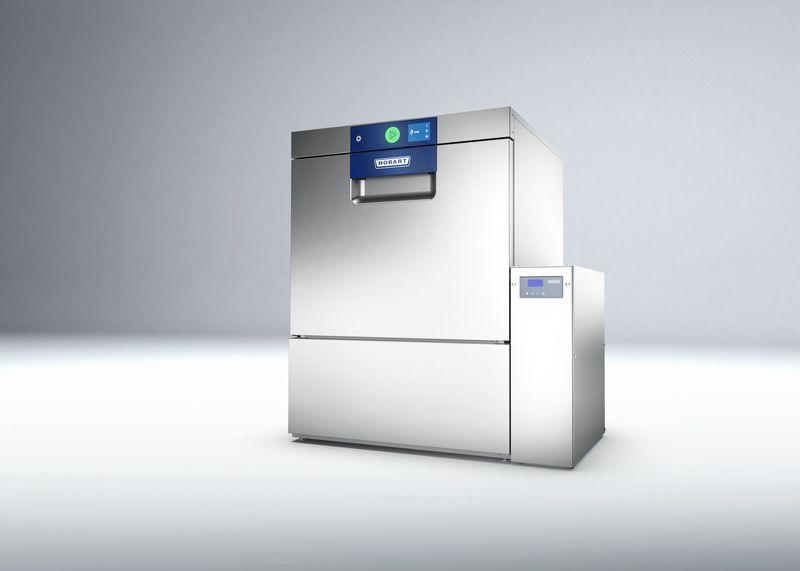

The free-standing reverse osmosis system is suitable for installation next to the dishwasher. Minerals and salts are completely removed from the water. This prevents salt and limescale stains on dishes, glassware and cutlery and optimises the wash result.
Self standing compact unit for lower capacity requirements
The raw mains water enters enclosed system and is forced at high pressure through a special extremely fine membrane
Salts and minerals are thereby completely removed from the water. The downstream dishwasher is thus supplied by perfectly clean water
The integrated carbon filter removes rough particles to protect the membrane
Easy access to the membrane and pre-filter
The power supply is provided by a 230 V plug
Variants
Order number
Description
RO-S
Small free standing reverse osmosis
PRODUCT FEATURES
Minimum space requirement: Vertical or horizontal installation next or on top of a glass- / dishwasher
Continuous treatment system providing demineralised water for top-quality wash results
Prevents salt and limescale stains on dishes, glasses and cutlery
Protects machine against limescale deposits
Optimises the effectiveness of detergents
Minimum operating costs at highest capacity
Bypass function: washing operation of the dishwasher is always guaranteed
Easy to operate with integrated display
Fast and easy removal of the pre-filter
Technical data
Power Supply
230 / 50 / 1
Weight (gross / net)
20 kg
Maximum Supply Hardness
35 °dH*
Maximum Conductivity Supply Water
1,200 µS/cm
Supply Capacity Continuous
2 l/min
* The installation must be performed according to WMTS-101:2018. A back flow prevention for the raw water supply must be installed. A back flow prevention for the drain connection is part of the optional installation kit. From 10°dH, we recommend installing an upstream water softening system to prevent the blockage of the membrane. Hard water reduces the permeate output and shortens the life of the membrane.
Accessories
Order number
Description
01-294217-1
25 litre buff er tank to increase the capacity and to achieve a more even level of purification fixation to wall or fl oor diameter ~245 mm length ~475 mm incl. T-connection piece
